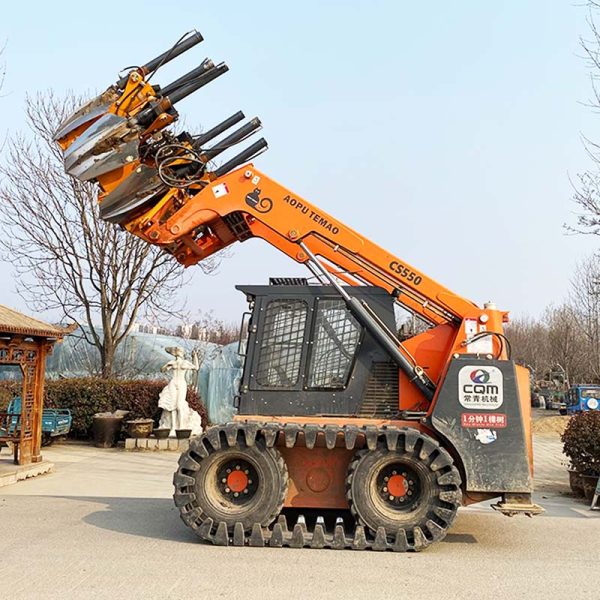

C80-4 High Efficiency Tree Digging Shovel Transplanting Tree Transfer Machine For Earth Moving Machinery

Equipped with the 10th generation tree digging machine head: imported hydraulic pipes and sealing rings are used, and the blades and shovels are made of imported steel, with reliable quality and stable performance.
Water-oil dual cooling system: Water cooling and oil cooling are integrated to reduce the heat generated by the radiator and maintain the stable operation of the machine for a long time.
Rear outrigger design: Supporting the rear outriggers while digging trees can increase the pressure of the front blade and increase the efficiency of tree digging. It also stabilizes the fuselage and increases the counterweight.

Category:

Item Model: C80-4

Diameter of upper surface of soil ball: 81.2cm

Diameter of lower surface of soil ball: 44.5cm

Soil ball height: 50cm

Shovel blade(piece):4

Unladen weight(kg): 1050

Volume of ball(m³): 0.24

Applicable excavator tonnage(T):7.5+

Unladen length and width(mm):900*800*1616

Opening width(mm):570

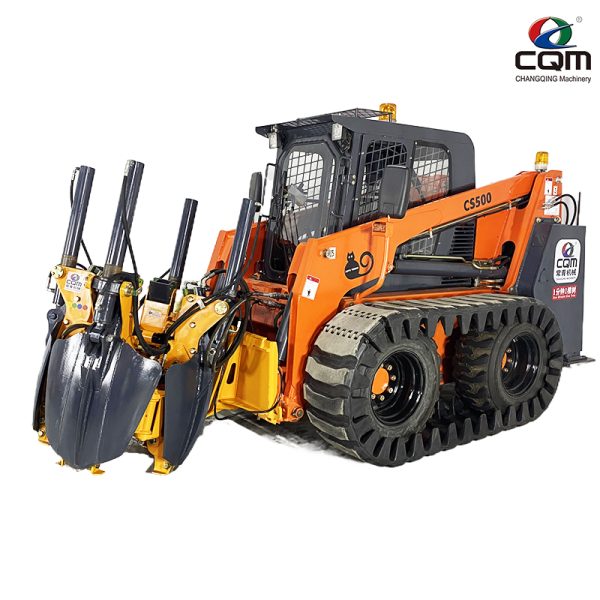

Matching integrated host model:CS450、CS500、CS550
